Polymer Roofs fit Andersen® Casement Bay Windows

Compare your window measurements with the diagrams to find other applications.

Click on picture and diagram to enlarged

The use of these roofs avoids custom roof construction or plywood kits, saves time and money and results in an attractive maintenance free roof.

30C1W

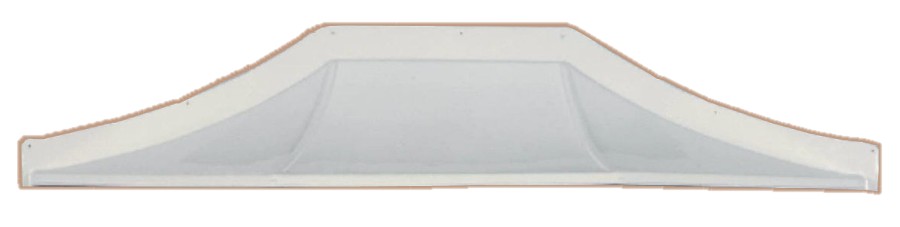

 30C1 White

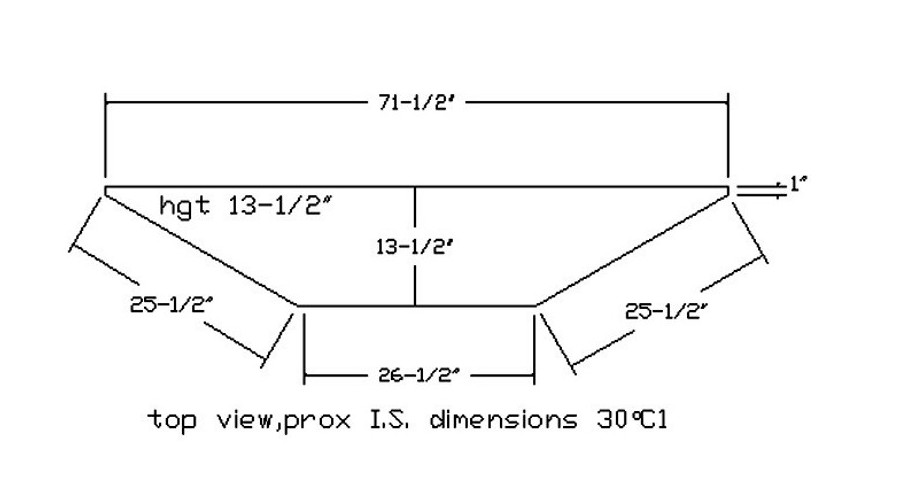

30C1diac

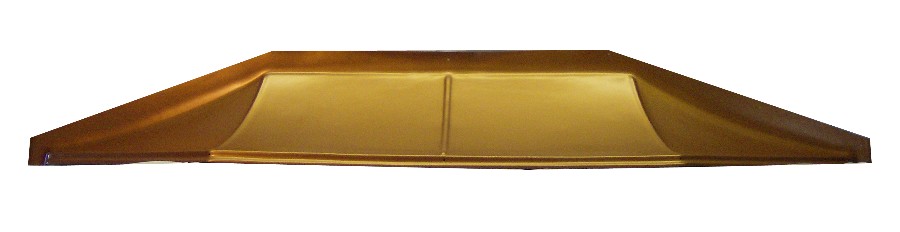

   30C2C

30C2 Coppertone

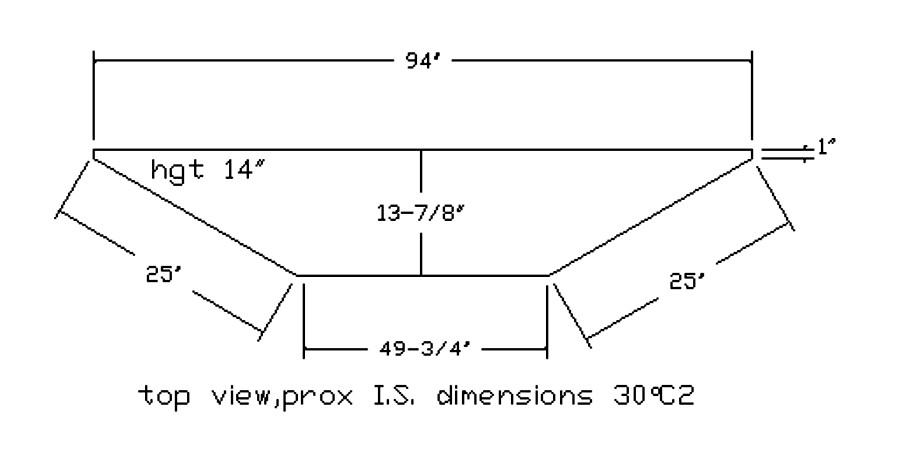

30C2diac
Here is a list of roofs and the Andersen casement bay windows they will fit:

30-C-1 Casement Angle Bay Roof
Fits these Andersen® units:

30-C13-20
30-C135-20
30-C14-20
30-C145-20
30-C15-20
30-C155-20
30-C16-20



30-C-2 Casement Angle Bay Roof
Fits these Andersen® units:

30-C23-20
30-C235-20
30-C24-20
30-C245-20
30-C25-20
30-C255-20
30-C26-20		 30-P4030-20
30-P4035-20
30-P4040-20
30-P4045-20
30-P4050-20
30-P4055-20
30-P4060-20

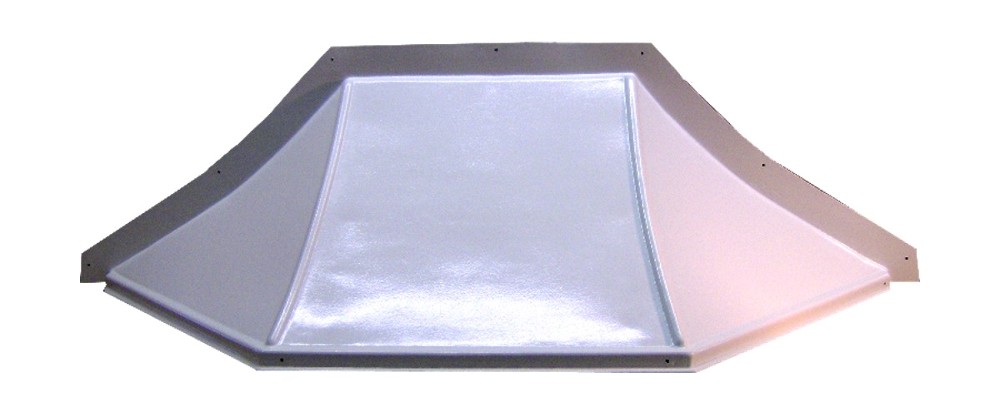

45C1W

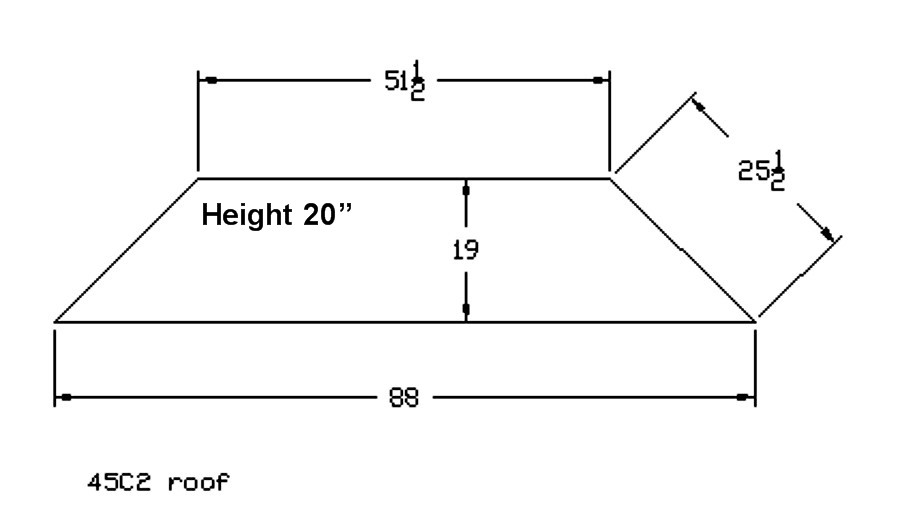

45C1diac   45C2diac

45C1 White

45-C-1 casement angle Bay roof
Fits these Andersen® units:

45-C13-20
45-C135-20
45-C14-20
45-C145-20
45-C15-20
45-C155-20
45-C16-20

45C2

45-C-2 Casement Angle Bay Roof
Fits these Andersen® units:

45-C23-20
45-C235-20
45-C24-20
45-C245-20
45-C25-20
45-C255-20
45-C26-20		 45-P4030-20
45-P4035-20
45-P4040-20
45-P4045-20
45-P4050-20
45-P4055-20
45-P4060-20



Other sizes available

®Andersen registered trademarks of Andersen Corp, Bayport, Minnesota. The use of this name does not imply authorization or sponsorship by Andersen Corporation

17 July 2009
